​Another patch made for the right side.

​Its not looking so ugly now just trying to make it look real nice

​Had to hand fab new replacement sections 19 gage  just like the original.

​Also the lower rear quarter needed some work so a new panel was made.

​Passenger side ground & cleaned up.

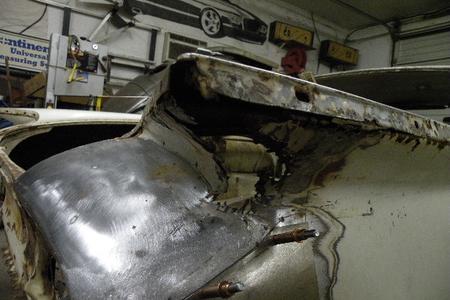

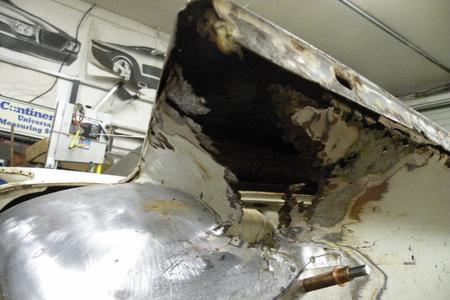

​Now for the right rear tail section its a disaster.

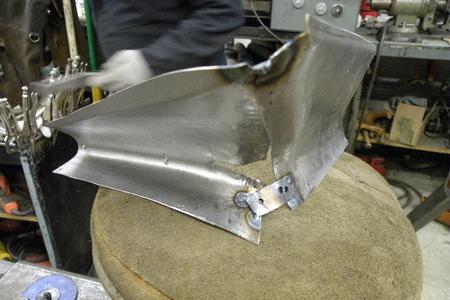

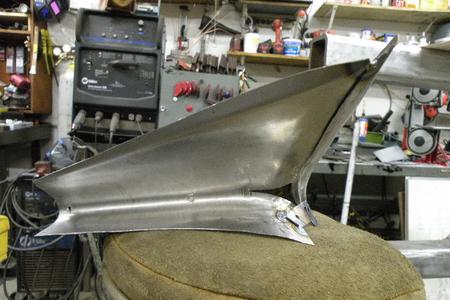

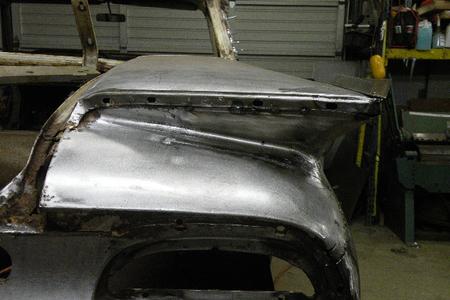

​With some artistic fab work is looks like it will be a nice replacement section.

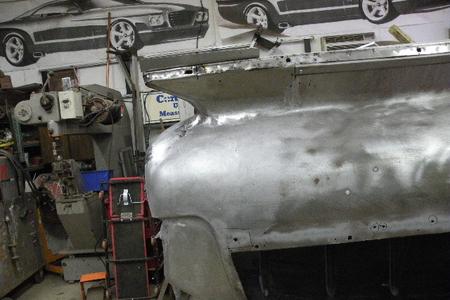

​Its cleaning up real nice now

​A repair piece was also made for the left side bumper recess.

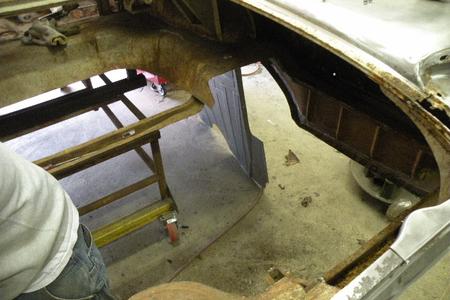

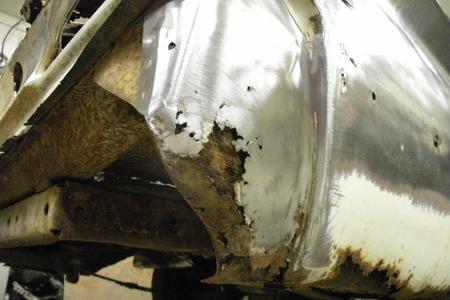

​The left side was worse it needed inner section & part of the inner wheel arch made along with the out side

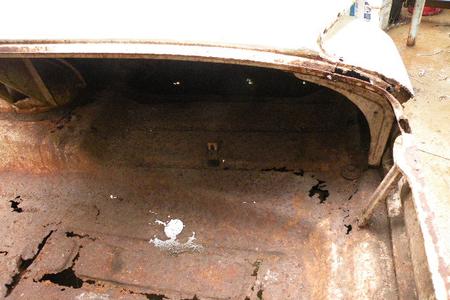

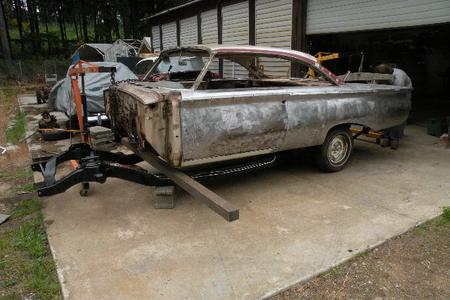

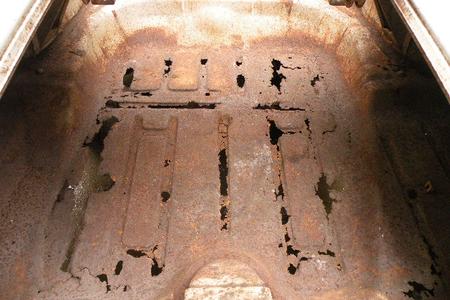

​The back section of the car stuck out of the old short garage & over time in the north west climate took its toll. There was rust out all over but the rear was the worst.

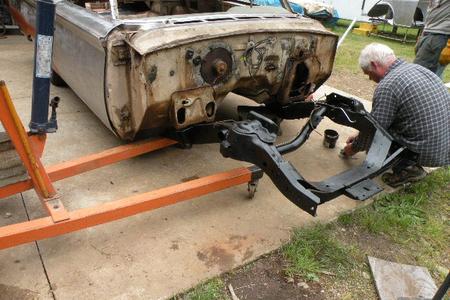

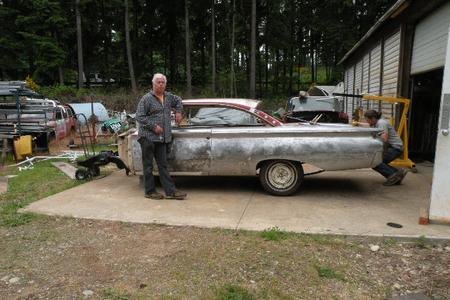

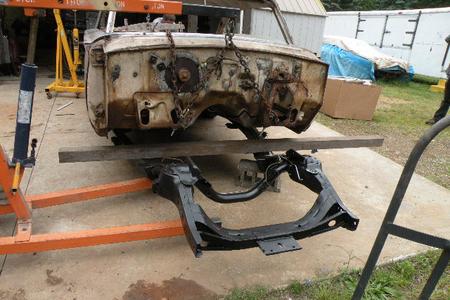

​The owner brought the chassis back after he blasted & painted it.

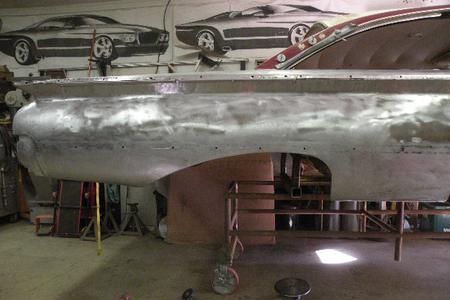

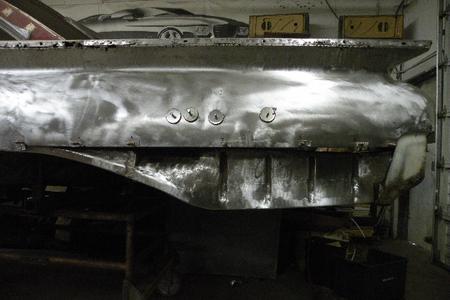

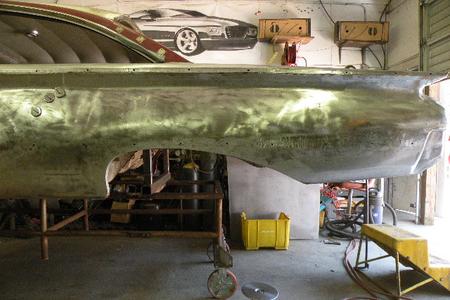

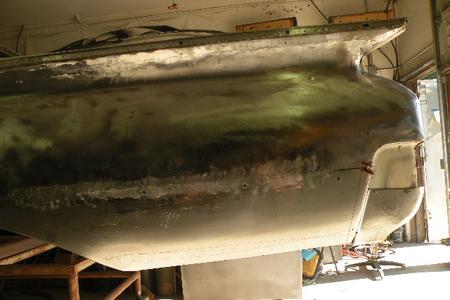

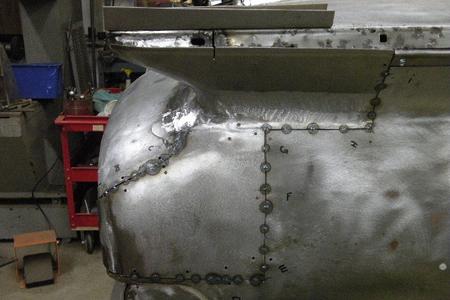

​Driver side fully welded ground hammered & dolly work & some shrink disc clean up, very little filler will be needed.

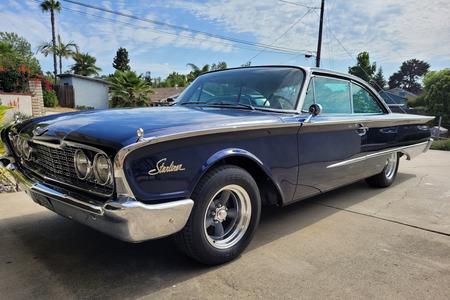

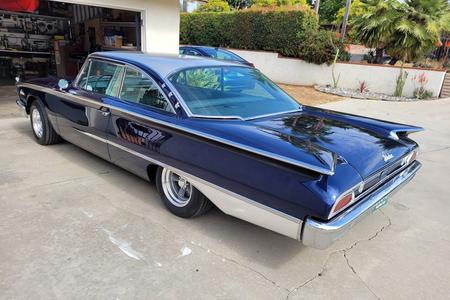

1960 Ford Starliner Rust Out Repair ​​

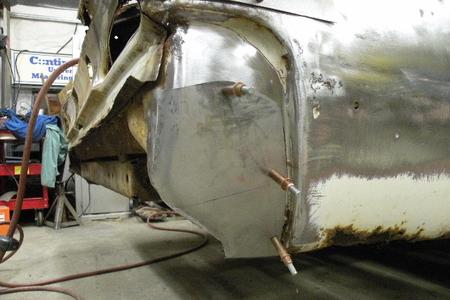

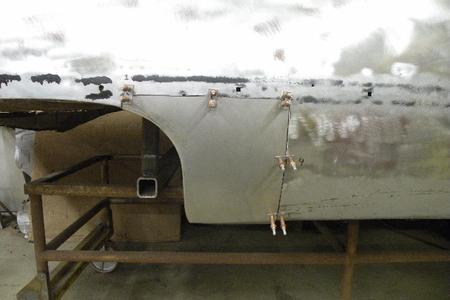

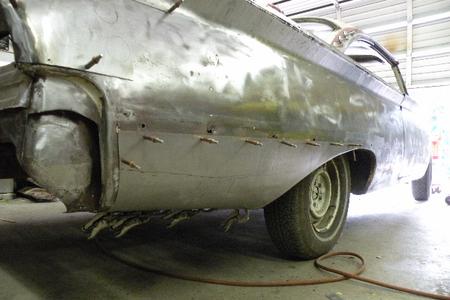

​The quarter patch tacked into place

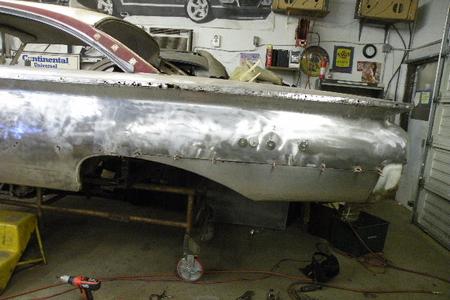

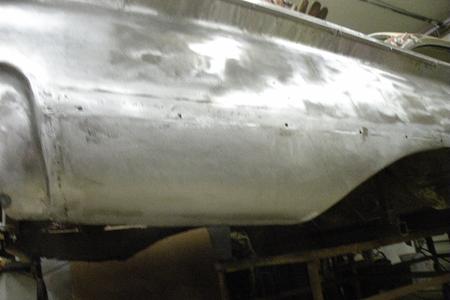

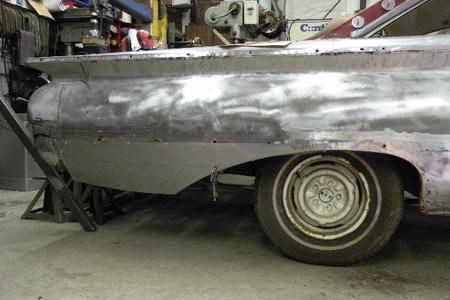

Passenger side quarter starting to look real clean.

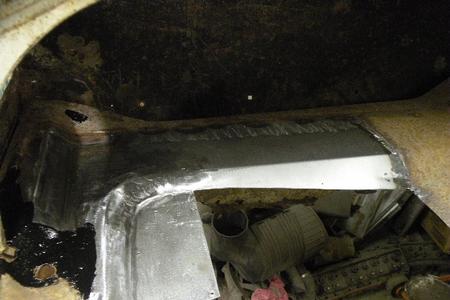

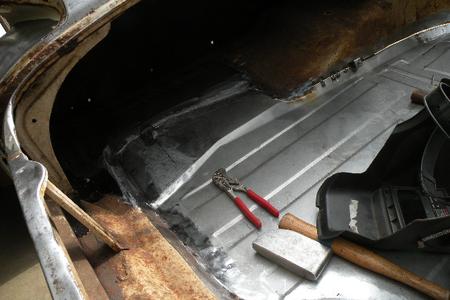

​The new inner panel with factory style stampings

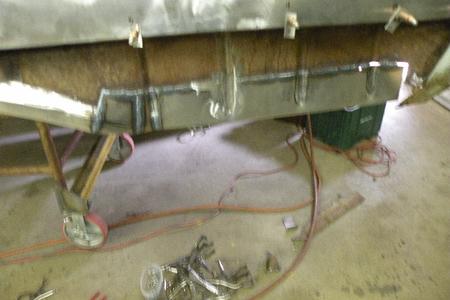

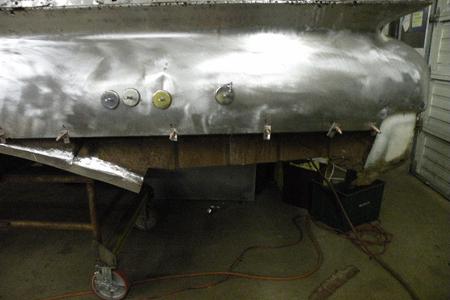

​Tacking in the new replacement sections.

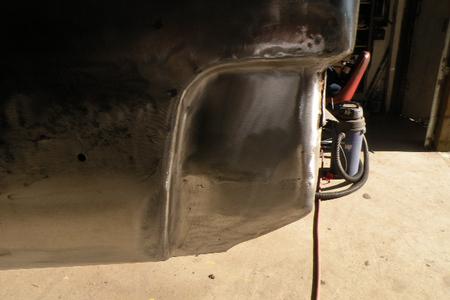

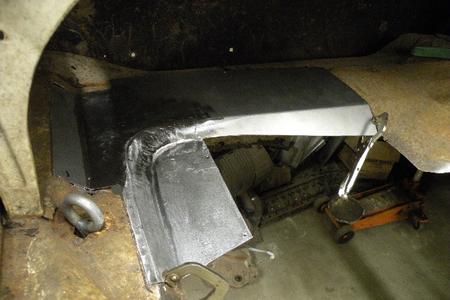

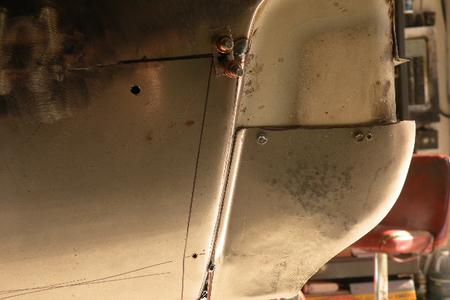

​Now for the bottom corner bumper recess another repair section was made.

​Looks like a good fit & match to the original.

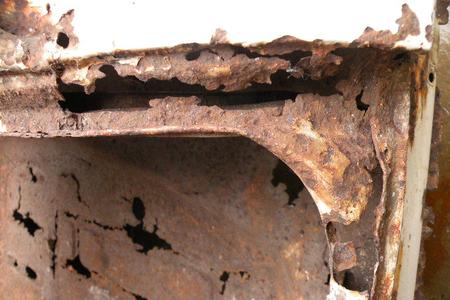

​Out with the old rusted mess

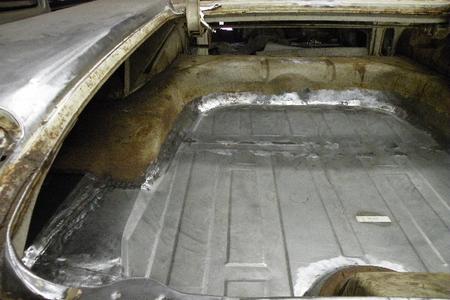

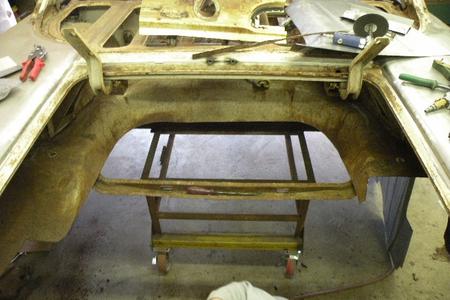

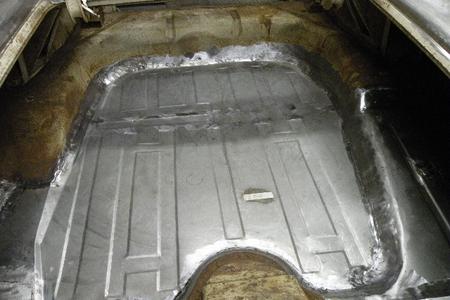

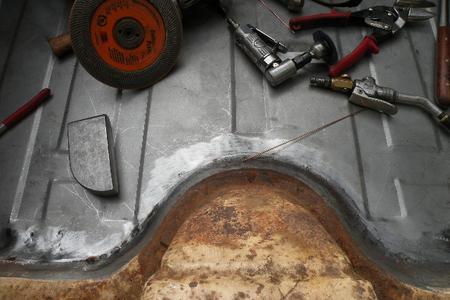

The new inner arch installed the inner panel was derusted & rust preventive painted

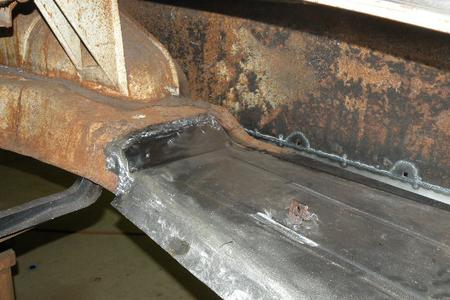

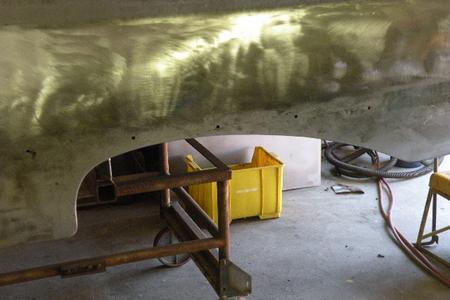

​All welded ground & cleaned up looks factory.
