1972 Datsun 510
minor front damage repair

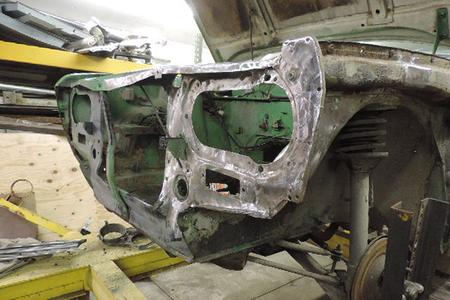

The outer core support area was straightened & rewelded in place

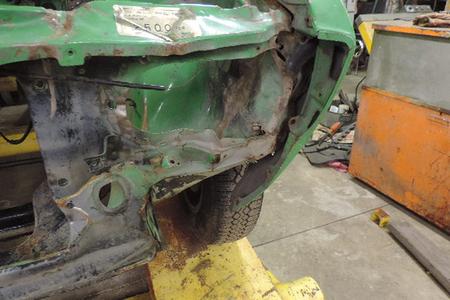

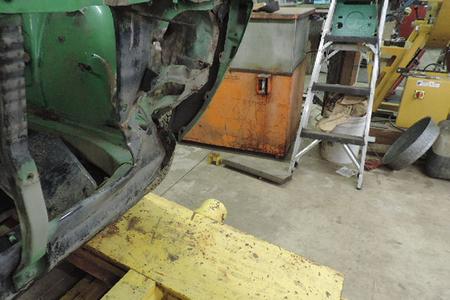

I am going to try & straighten this verses replace, so with some pulling plus a lot of hammer & dolly work plus maybe a little heat it will all come out. I do have a replacement nose section if I want to use it.
dannypascoemetalshaping.com

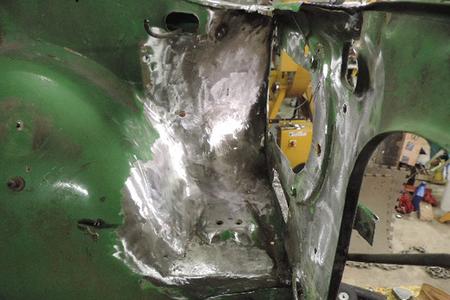

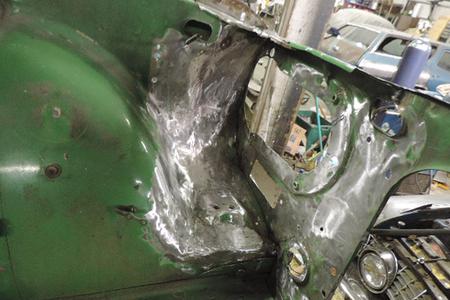

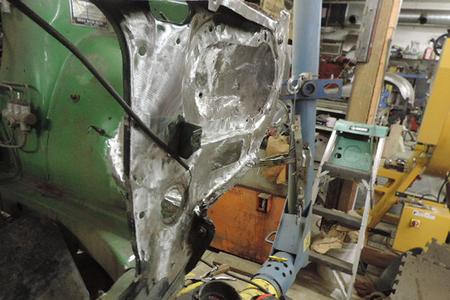

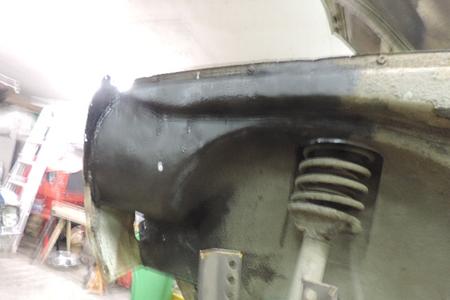

The inner side of the core support & inner wheel house cleaned up nice.

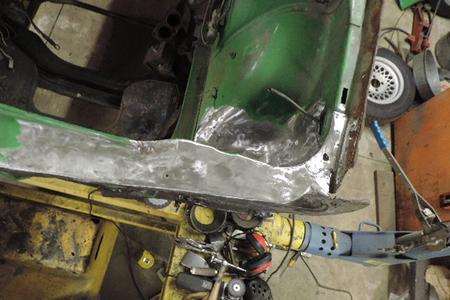

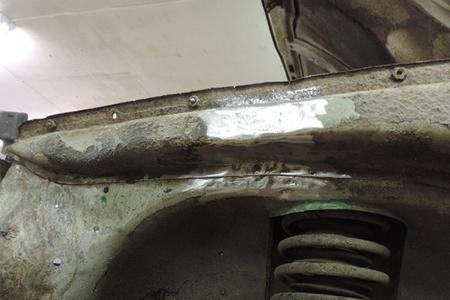

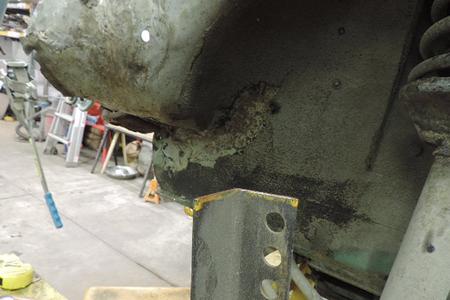

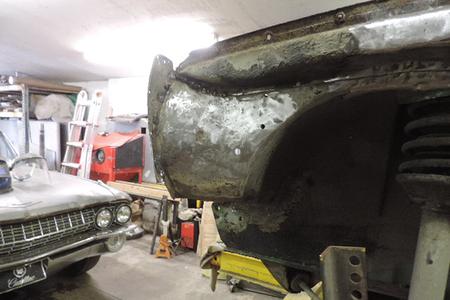

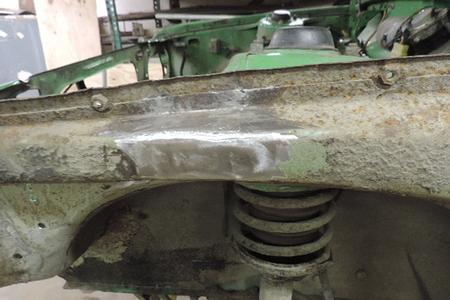

I forgot to take pictures of the kinks in the upper rail & the inner fender here they are pulled out & back in alignment.
The front fenders are installed, hood aligned & ready to put the wheels back on & owner take home. Its finished for my part nice fast repair.

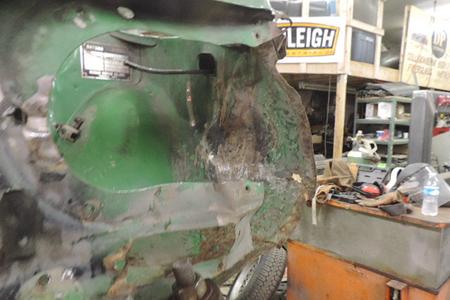

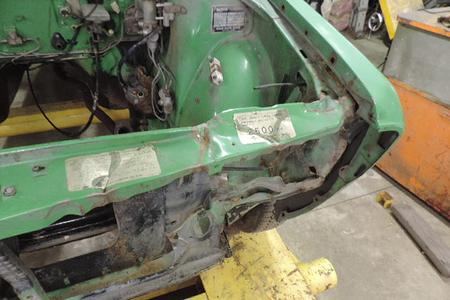

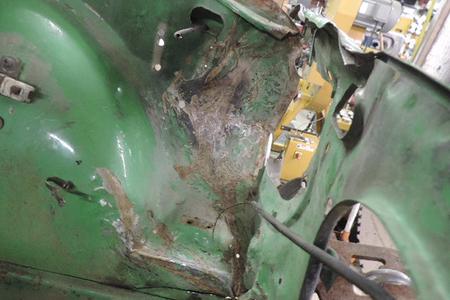

With a pull off of the tower I started working out the wrinkles its starting to go back to its original factory shape & not have the waded up look. No heat so far.
No more wrinkled & wadded up mess.
The top of the core support after repair.
Rust preventative paint was put in the areas similar to the factory paint.

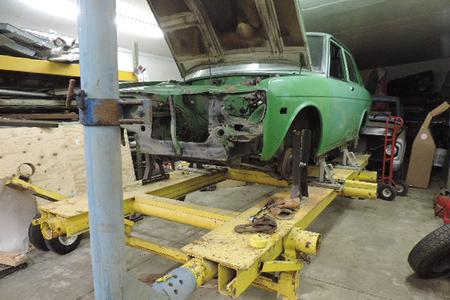

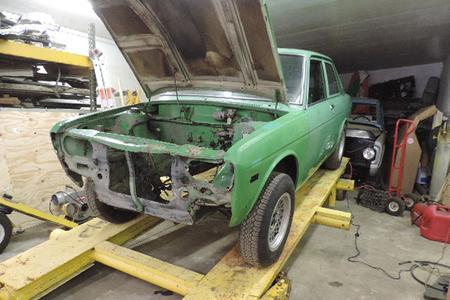

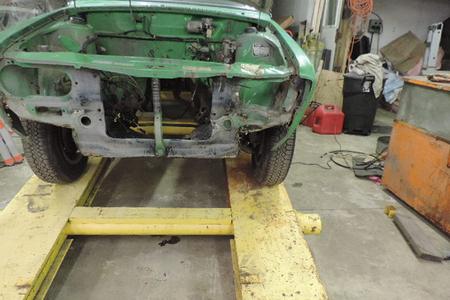

Yes we do small jobs like this on any pre 1980 Vehicles I am just getting it up on my frame repair machine.

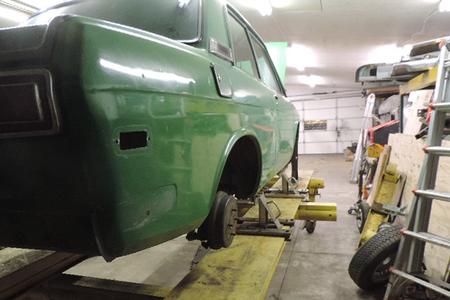

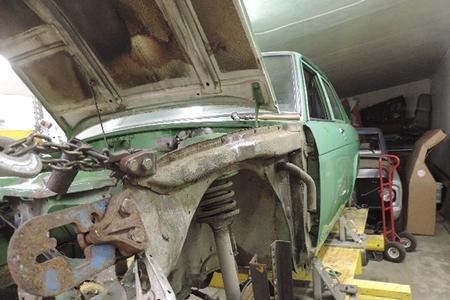

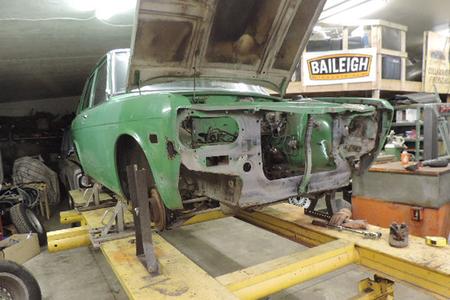

Its now ancored to the frame table which is a level & flat surface to work off of with pulling capabilitys.

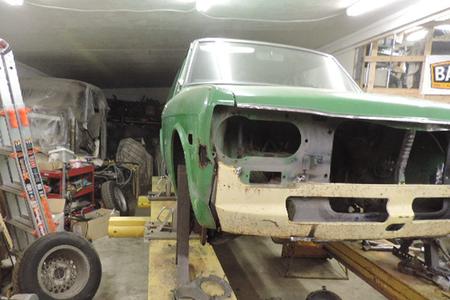

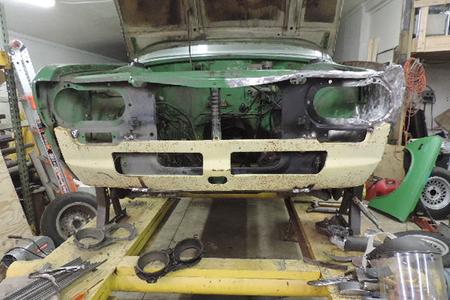

A front lower valance was installed & welded in place.
Its starting to clean up nicely.

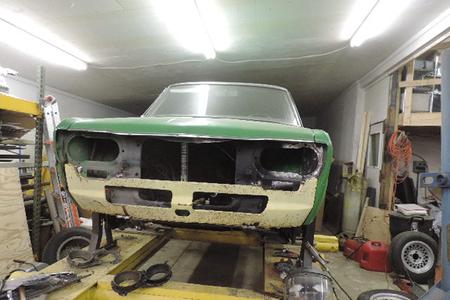

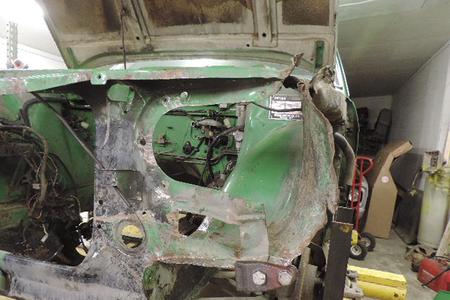

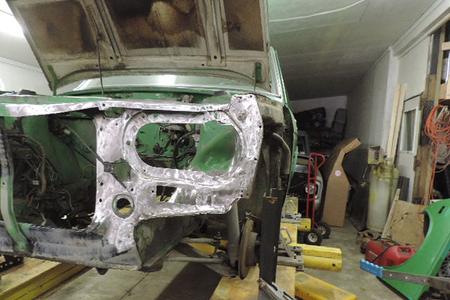

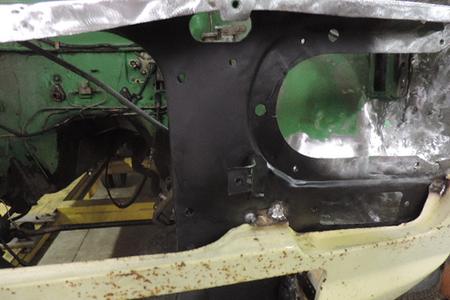

Front of the core support after repaired.
